Scribed Casework for San Francisco Architects and Their Drawings

Few cities pack as much architectural variety into seven by seven miles as San Francisco, and few make a cabinetry drawing work as hard. Lots are narrow and deep, often just twenty-five feet wide; many flats sit a full story above the garage; original 1900s and 1920s plaster walls are rarely plumb and floors slope toward the bay. This page explains how PineWood supports an architect’s drawing set here: the shop drawings we return, the scribe and reveal conventions we hold, the period vocabulary we match, and how a Rocklin shop lands finished casework in a city building. We are a licensed California contractor (CSLB #1095293), founded in 2006 and operating as the cabinetry division of Voronenko & Ethen Associates, with design and build under one roof.

We begin from your plans, elevations, sections and finish schedule and translate them into dimensioned shop drawings with construction, joinery, hardware and finish called out explicitly. Your review and approval of those drawings is the one gate in the workflow: nothing moves to the floor until you have signed off. We field-verify first, once rough conditions allow, and in San Francisco that measure is doing structural work for the schedule, because the gap between a nominal plan and a century-old flat is where most cabinetry problems begin. Constructability questions are raised on the shop drawings with a proposed solution that keeps the drawn proportion. The full sequence is on our trade process page.

The millwork section we work best from is the one our specifications reference describes: construction type (inset face-frame or frameless) with target reveals, species and veneer cut with any grain-matching intent, box and drawer substrates, door and edge profiles, finish system with color and sheen, functional and decorative hardware with finishes, and any code or performance requirement. Underneath it we build veneer-core hardwood plywood boxes, solid hardwood face frames, five-piece cope-and-stick or slab doors, and dovetailed solid-wood drawer boxes on concealed full-extension soft-close undermount slides.

Our shop drawings carry the installation conventions of ANSI/AWI 0620-2024, and in this city the scribe clauses matter most. Scribe material is rationed by grade: at Premium the maximum installed width of a scribe filler is two inches and scribe moulding is not permitted at all, so the fit has to be cut into the casework itself; at Custom either filler or moulding is permitted to three inches. Scribes may be set flush with the abutting surface or set back a maximum of 3.2 mm, and the scribe joinery must be consistent across elevations. Fillers at an inside corner where two elevations meet must be equal in width. A run that needs four inches of scribe somewhere along a Pacific Heights wall cannot have it at Premium grade, so those inches appear as filler width in the elevation or as a deliberately shortened run before a box exists.

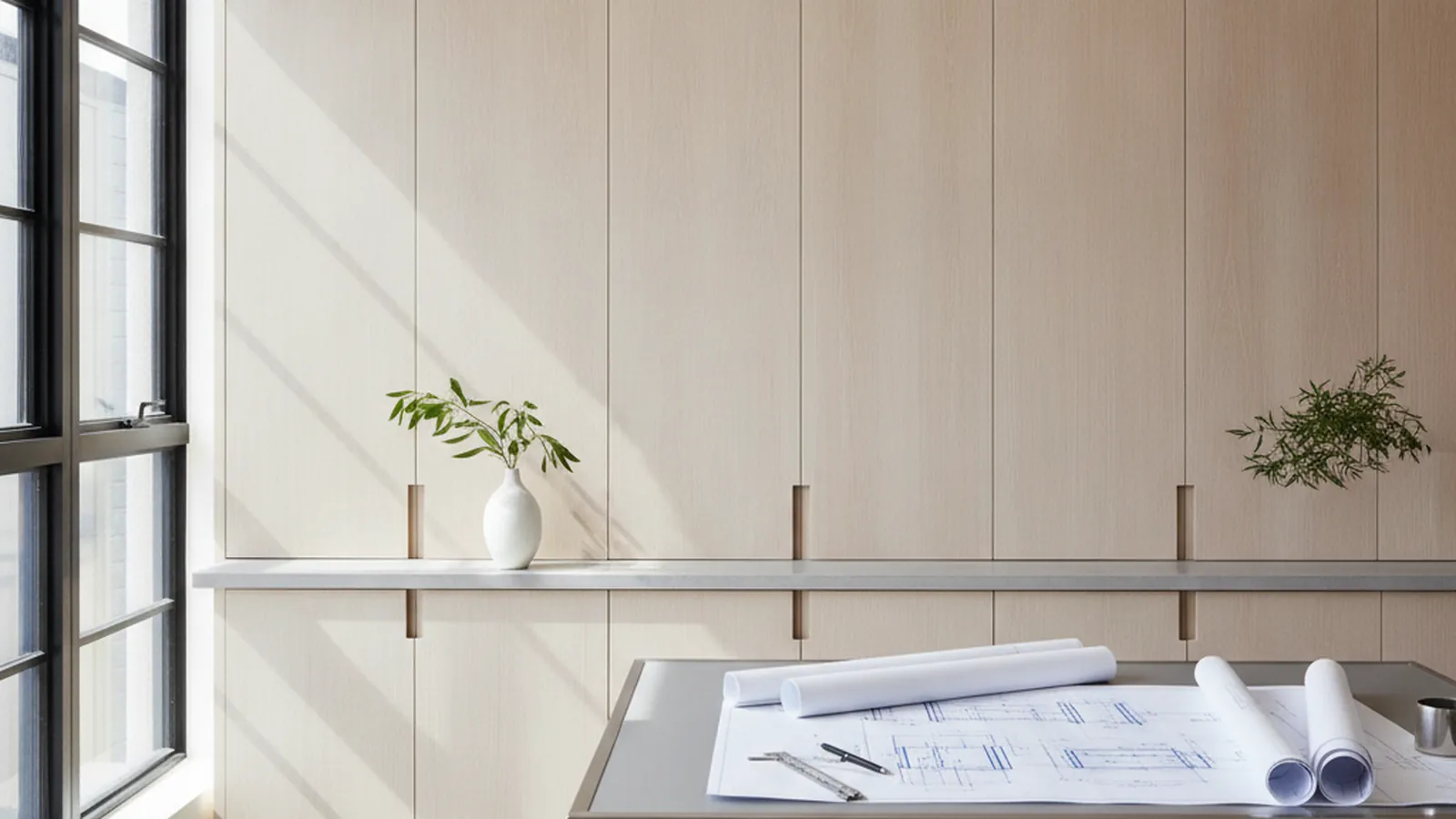

The historic flat is the city’s signature housing: the bay-windowed flats of the Western Addition, the Victorians ringing Alamo Square, the Edwardians of the Inner Richmond and Noe Valley. Their kitchens were rarely the centerpiece of the original plan and often sit at the rear off a long hallway, so the drawings recover wasted space, open sightlines where the structure allows, and match the home’s existing millwork so the new work reads as original. We draw full-height casework that uses the tall ceilings these homes are known for, detail door styles, crown and hardware to the era, and scribe to plaster. For the profile and proportion questions those sets raise, our guide to Victorian and Edwardian kitchens in San Francisco is the companion to this page.

The towers of Rincon Hill and Mission Bay, the converted warehouses of Dogpatch and SoMa, and the newer townhomes of Hayes Valley and the Marina ask for a different vocabulary. The architecture is clean and open, the kitchen is part of the main living space, and the casework has to read as furniture: handle-free fronts, integrated appliance panels, concealed storage, flush-overlay reveals held consistent across the elevation. Light is precious in a narrow, fog-shaded room on the avenues, so light-reflecting finishes, glass-front uppers and considered sightlines are frequent calls in the finish schedule.

Many San Francisco projects sit in flats, condos and towers where building access, elevator dimensions, loading windows and HOA coordination shape the install as much as the design does. We draw unit sizes and finished-end conditions with the building’s access in mind, and we plan delivery and installation around steep stairs, narrow garages, street parking and building requirements from the start, so those constraints live on the drawings rather than arriving as a surprise. Finishing happens in controlled shop conditions in Rocklin, which matters when the site is a flat with no room to spray. How we sequence with the general contractor is on our San Francisco builders page; the same work from the owner’s side is on the San Francisco homeowner hub.

Material choice follows the climate. Coastal fog and the cooler air of the avenues argue for veneer-core plywood boxes, floating panels and durable sprayed conversion-varnish systems where resilience matters, with hand-applied finishes where tone and warmth are the point. We prepare samples on the actual project species for your approval before production and can match a specified sheen or an existing reference.
